DDD-E3 18.40-19.20-DTL

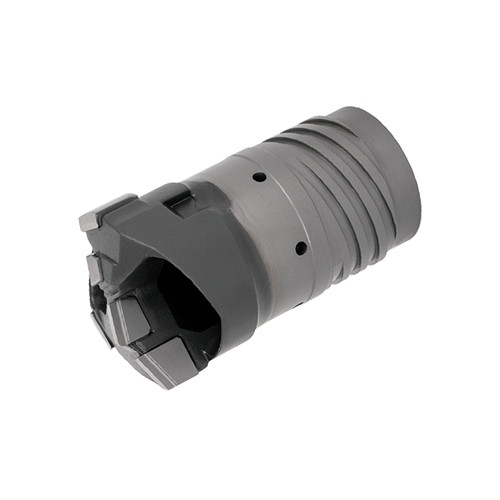

Deep double tube drills with external 4 start thread connection and brazed tips. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.

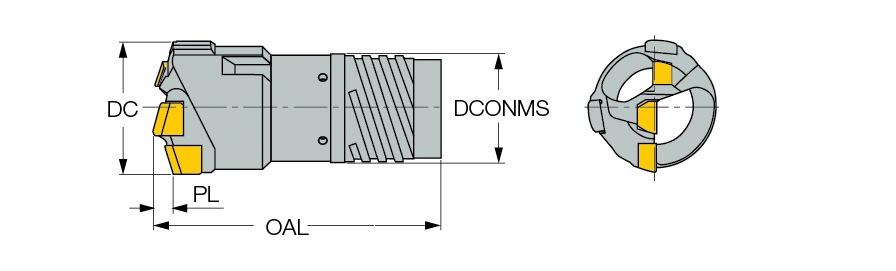

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 18.4 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 19.2 mm |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Body Material | Steel |
| Connection Thread Size (Ts) | TDO-I0 | Unit | M |
Product Features
| Family Description | Deep double tube drills with external 4 start thread connection and brazed tips. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |
| Remarks | The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: ISO P, K, M, N materials Ordering example: DDD-E3 47.10 OT-P0 For quotation form and user guide, click on More Info |
