SD D1.00-H062A-SP11 IC908

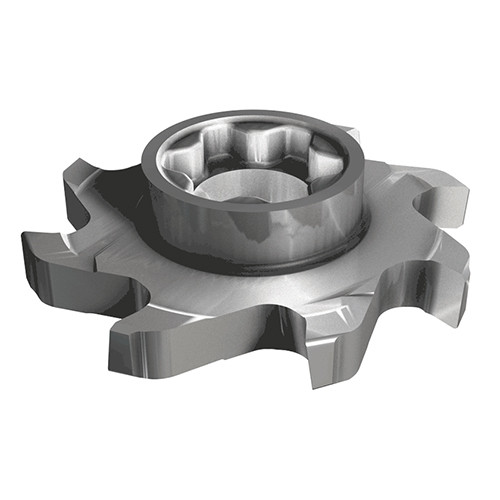

Interchangeable solid carbide T-Slot milling heads.

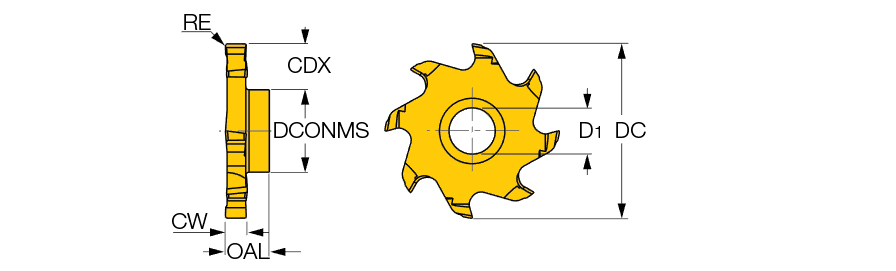

| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Grade | IC908 |
| Cutting Diameter (DC) | 0.988″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.283″ |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.008″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.276″ | Cutting Edge Material | Carbide |
| Cutting Width (CW) | 0.062″ | Tool Type | Solid "T" slot cutters |
| Connection Diameter Machine Side (DCONMS) | 0.433″ | Body Material | Carbide |
| Overall Length (OAL) | 0.261″ | Unit | I |
Product Features
| Family Description | Interchangeable solid carbide T-Slot milling heads. | FamilyName | SD-SP |

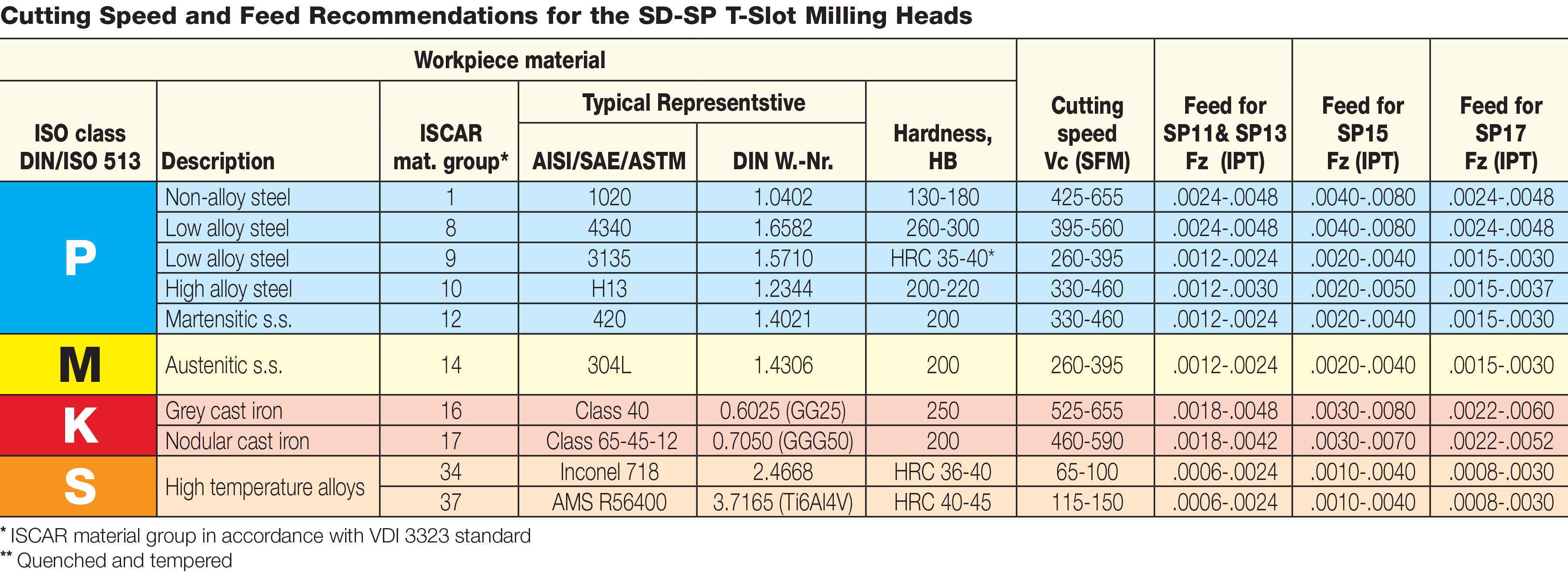

| Remarks | For machining recommendations, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0463
Name
Solid End Mill Heads
FamilyName
SD-SP
BrandName
Iscar
