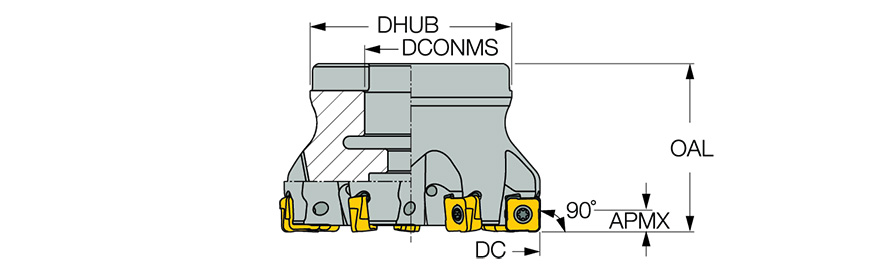

| Cutting Diameter (DC/DCX) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 7 mm | Application | | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 48 mm | Tool Type | 90° Facemills |
| Arbor Style | A | Unit | M |
| Master Insert Identification (MIID) | S890 SZMU1005... |
Product Features
| Family Description | Face Mills Carrying Double-Sided Square Inserts with 8 Cutting Edges | FamilyName | S890 FSZ-R10 |

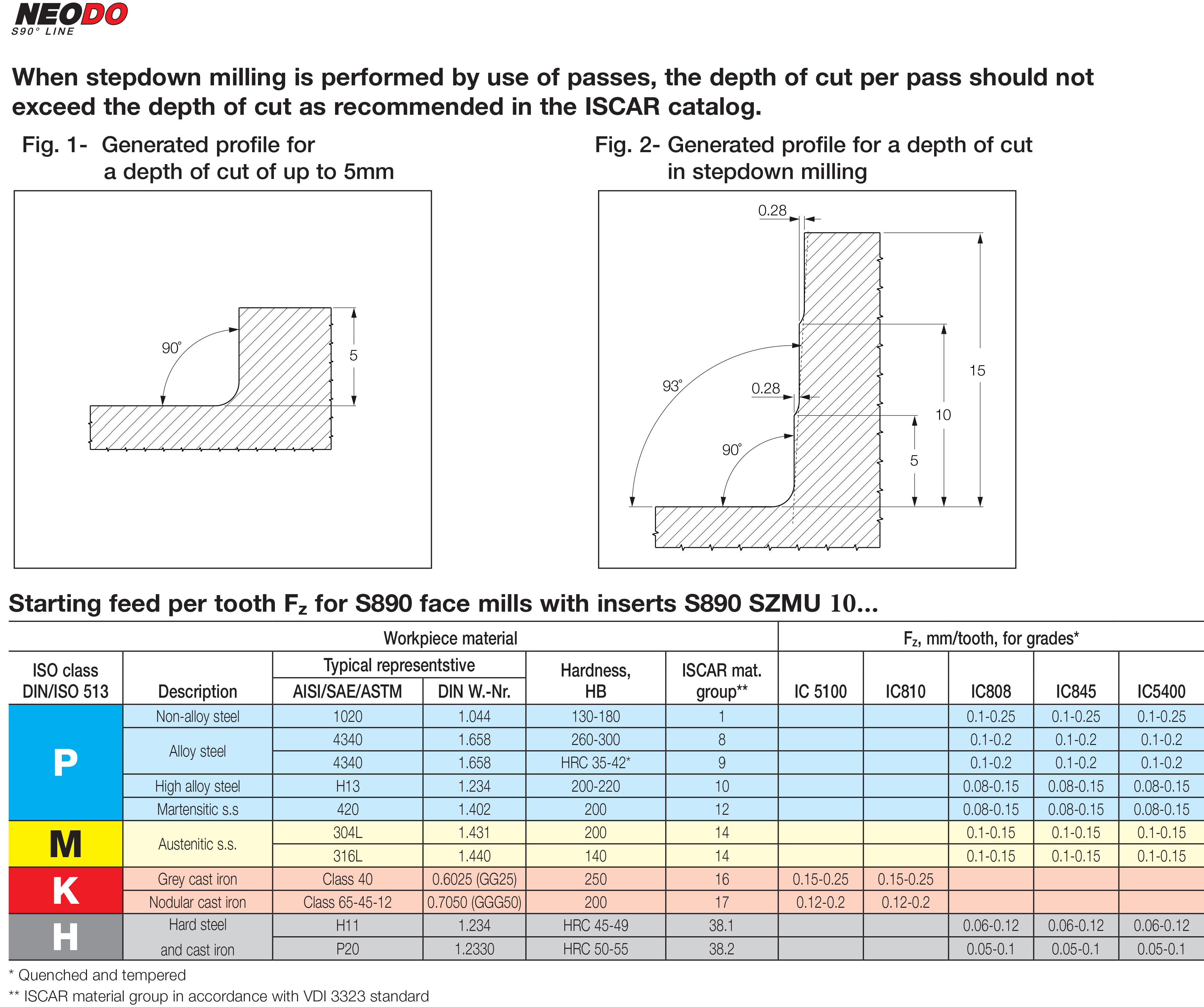

| Remarks | For machining recommendations, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4800
Name
Indexable Face Mills
FamilyName
S890 FSZ-R10
BrandName
Iscar
