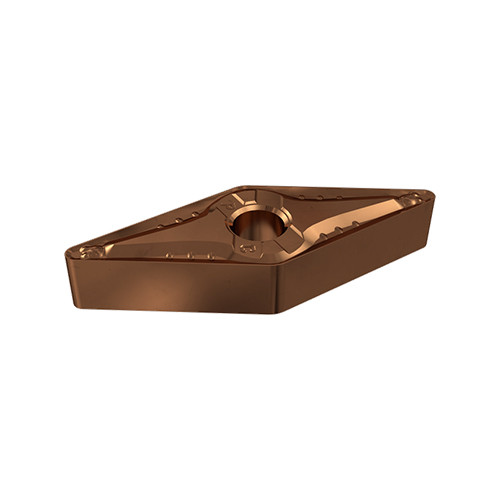

VNMG 160408-F3H IC1024
Double-sided 35° Rhombic inserts for semi-finish and finish and finish turning of hardened steel. Low cutting forces dueto very sharp edge and positive rake.
| Applicable Material | | Hard Materials | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Min D.O.C. | 0.2 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Insert Size | 332-F3 | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Cutting Edge Length (L) | 16.6 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | F3H |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAl+TiAlSiN | Body Material | Carbide |
| Grade | IC1024 | Unit | M |
Product Features
| Family Description | Double-sided 35° Rhombic inserts for semi-finish and finish and finish turning of hardened steel. Low cutting forces dueto very sharp edge and positive rake. | FamilyName | VNMG-F3H |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0124
Name
Turning Indexable Inserts
FamilyName
VNMG-F3H
BrandName
Iscar
