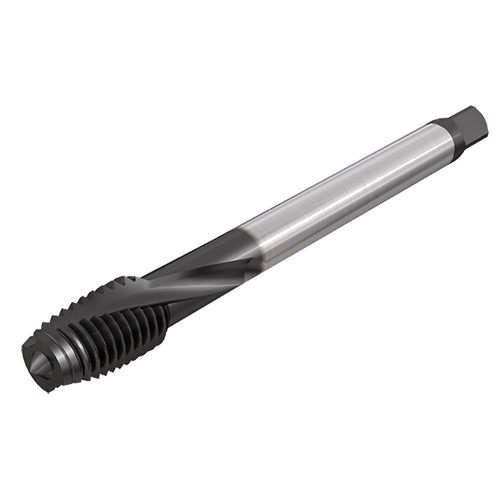

TPSN M-16X2.0-A HEDLC
HSS-E 5% Co right-hand 40° spiral flute machine taps according to DIN 13 for ISO metric coarse threads on aluminum and aluminum alloys.

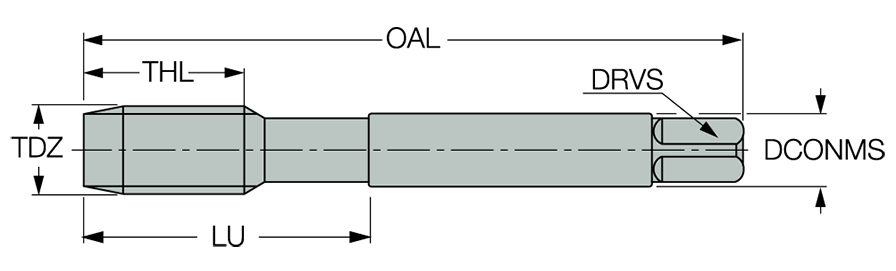

| Thread Diameter Size (TDZ) | M16 | Measurement Type | Metric |
| Thread Pitch (TP) | 2 mm | Grade | HEDLC |
| Overall Length (OAL) | 110 mm | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Thread Cutting Part Length (THL) | 20 mm | Body Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Drive Size (DRVS) | 9 mm |
| Flute Count (NOF) | 4 | Thread Size | M16 × 2 |
| Standard | DIN 376 | Unit | M |
Product Features
| Family Description | HSS-E 5% Co right-hand 40° spiral flute machine taps according to DIN 13 for ISO metric coarse threads on aluminum and aluminum alloys. | COO | Hungary |
| Remarks | The material designation HE was recently changed to HEST. HEST and HE are identical products and therefore you may still encounter HE designated items. |
Shipping Info
Weight per item
0.0940
