| Connection Diameter Machine Side (DCONMS) | 7 mm | Application | | Face Grooving | Int. Face Grooving | |
| Corner Radius (RE) | 0.8 mm | Tool Type | Face Solid, Grooving &Turning grooving |
| Cutting Width (CW) | 1.6 mm | Max. Face Grooving Feed (ffg(max)) | 0.05 mm/rev |
| Cutting Depth Maximum (CDX) | 3 mm | Min. Face Grooving Feed (ffg(min)) | 0.01 mm/rev |
| Overall Length (OAL) | 35 mm | Axial Groove Outside Diameter Minimum (DAXN) | 8 mm |
| Cutting Direction (HAND) | Right Hand | Front End Width (a) | 5.9 mm |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Overhang Minimum (OHN) | 20 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
Product Features

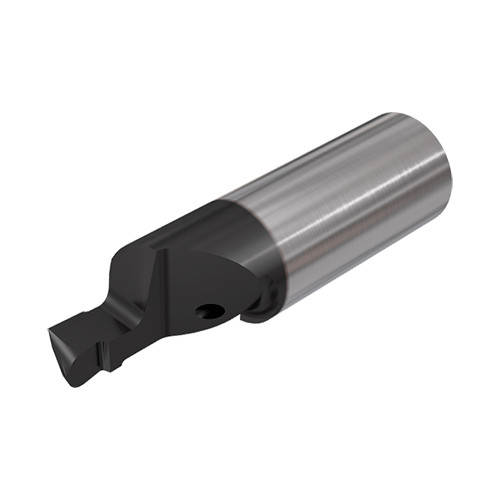

| Family Description | PICCO-JETCUT Inserts with internal coolant channel for profile face grooving at Dmin 8 mm | FamilyName | PICJ RF-T (Round Face Grooving) |
| Remarks | Only right-hand inserts are available as standard, left-hand inserts on request PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO types holders only | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0160
Name
Solid and Brazed Groove/Turn & Part Off
FamilyName
PICJ RF-T (Round Face Grooving)
BrandName
Iscar
