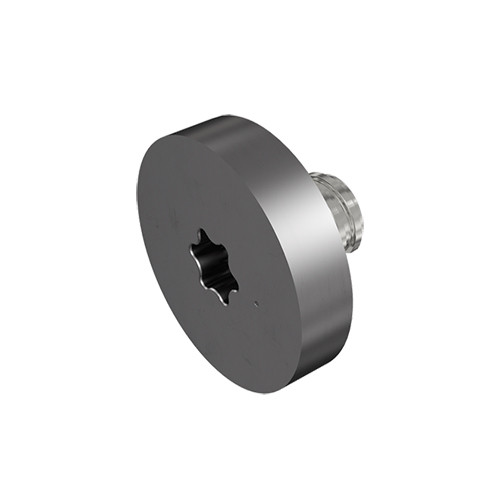

MM TC234N-99-G-T08 IC28
Interchangeable cemented carbide blank heads
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Cutting Diameter (DC) | 23.4 mm | Body Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Unit | M |
| Grade | IC28 | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Edge Material | Carbide | Cutting Width (CW) | 9.9 mm |
| Overall Length (OAL) | 18.45 mm | Functional Length (LF) | 10.5 mm |
| Measurement Type | Metric | Drive Size (DRVS) | 40 mm |
Product Features
| Family Description | Interchangeable cemented carbide blank heads | COO | Israel |
| Remarks | For tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Weight per item
0.0683
