SD S-A-L140-C20-C-H-SP17

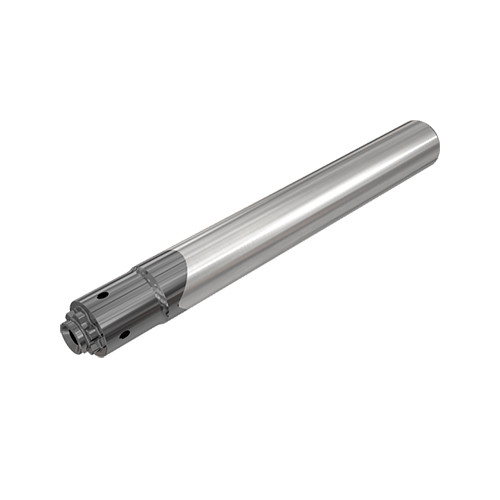

Stepped cylindrical carbide shanks with brazed steel segment and internal coolant channels, for interchangeable solid carbide milling heads.

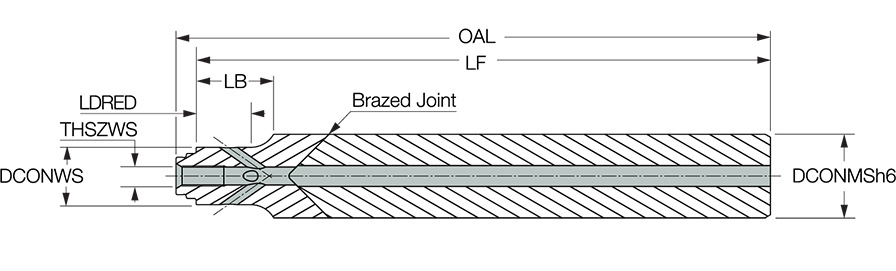

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M6x0.5 | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Body Material | Carbide |
| Overall Length (OAL) | 140 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | Cylindrical Shanks | Unit | M |
| Body Length (LB) | 23.8 mm |
Product Features
| Family Description | Stepped cylindrical carbide shanks with brazed steel segment and internal coolant channels, for interchangeable solid carbide milling heads. | FamilyName | SD S-A-C-H-SP |

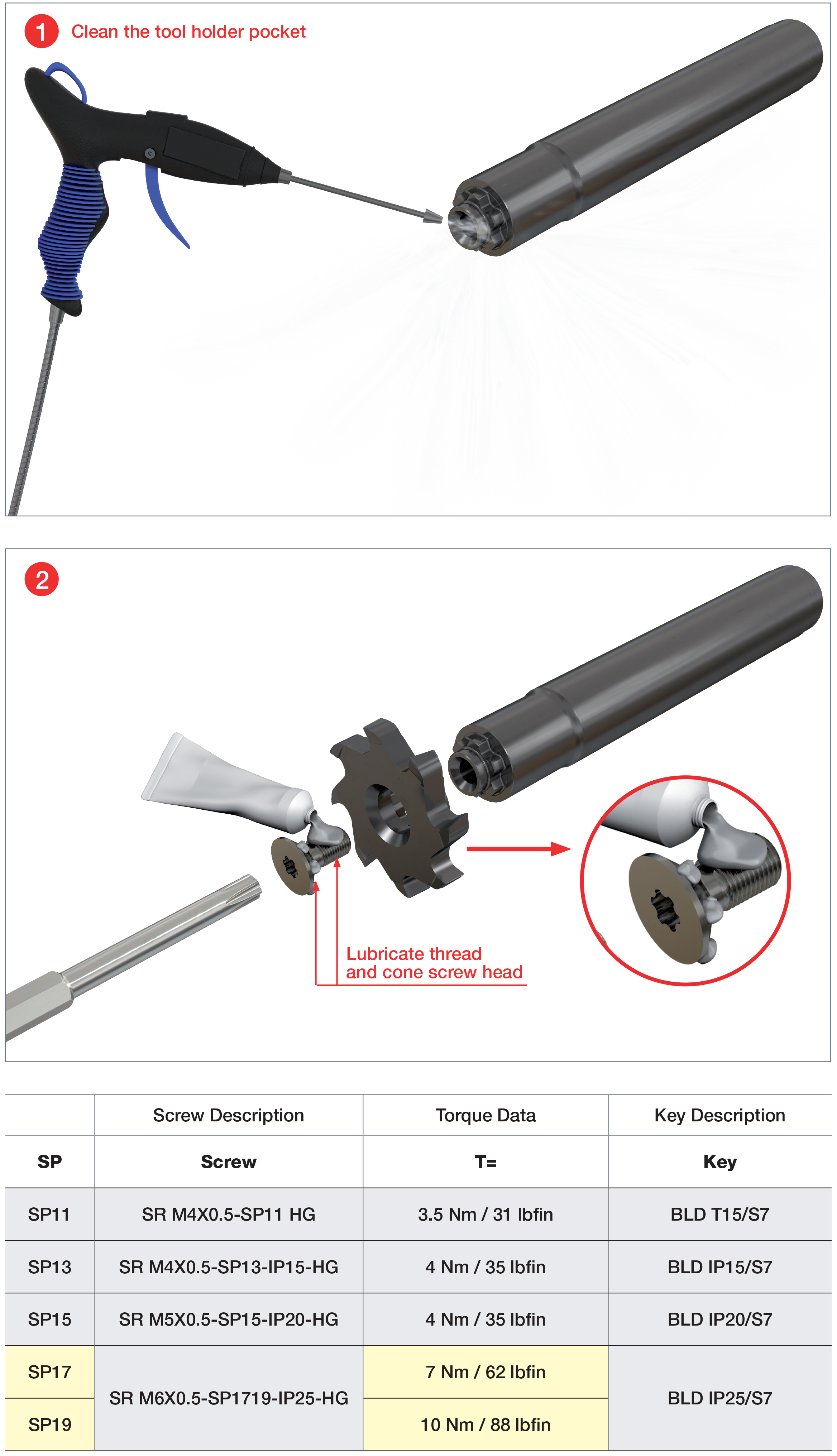

| Remarks | Apply lubricant to the clamping screw | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6350
Name
Solid End Mill Shanks
FamilyName
SD S-A-C-H-SP
BrandName
Iscar
