| Applicable Material | | Steel | Cast Iron | | Fixing Hole Diameter (D1) | 4.4 mm |
| Insert Style | WCMT | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.8 mm | Min D.O.C. | 0.8 mm |
| Insert Size | 08T508 | Depth of Cut Maximum (APMX) | 4 mm |
| Cutting Edge Length (L) | 8.7 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 5.1 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiCN+TiN | Unit | M |
| Grade | IC8150 |
Product Features

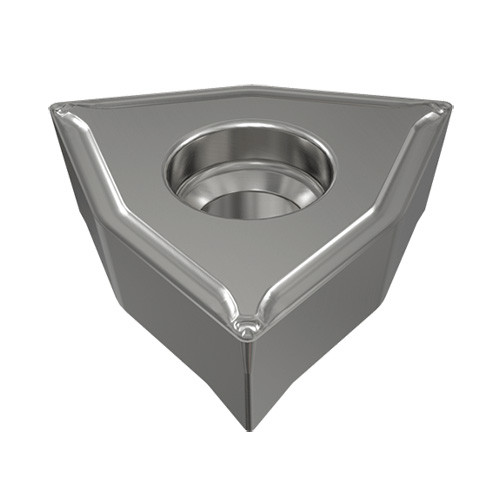

| Family Description | 80° trigon positive flank inserts for medium machining of steel. A ridge on the insert's bottom fits the groove on the tool seat for high edge location precision. | FamilyName | WCMT-M3P-SL |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0093
Name
Turning Indexable Inserts
FamilyName
WCMT-M3P-SL
BrandName
Iscar
