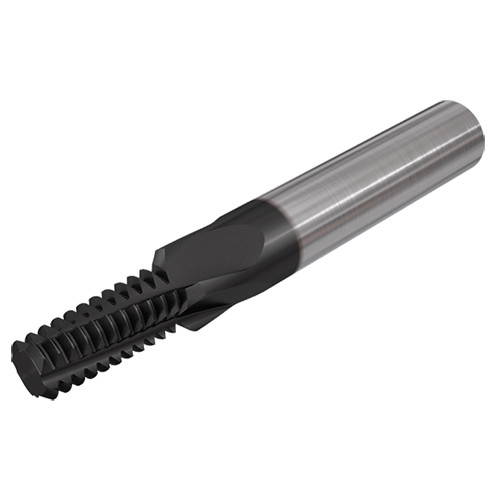

MTECH 06048C12 20UN IC902
Small diameter solid carbide internal UN profile threading and chamfering endmills, for hard materials up to 62 HRC, high temperature alloys and titanium alloys. High cutting speeds, low cutting forces resulting in accurate thread.
| Thread Size | 1/4″ | Application | | Internal Thread Milling | |
| Thread Pitch (TP) | 1.27 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 20 | Cutting Edge Material | Carbide |
| Thread Standard | UNC |THFT | | Measurement Type | Metric |

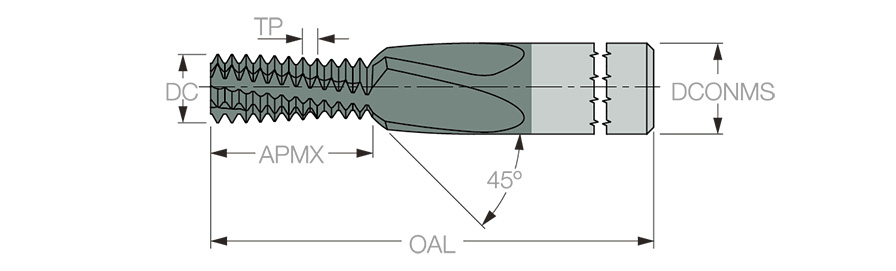

| Connection Diameter Machine Side (DCONMS) | 6 mm | Grade | IC902 |
| Cutting Diameter (DC) | 4.8 mm | Tool Type | Solid carbide thread mills |
| Overall Length (OAL) | 58 mm | Depth of Cut Maximum (APMX) | 12.1 mm |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Round | Thread Form Type (THFT) | UN60 |
| Coating | TiAlN | Unit | M |
Product Features
| Family Description | Small diameter solid carbide internal UN profile threading and chamfering endmills, for hard materials up to 62 HRC, high temperature alloys and titanium alloys. High cutting speeds, low cutting forces resulting in accurate thread. | COO | Israel |
Shipping Info
Weight per item
0.0220
