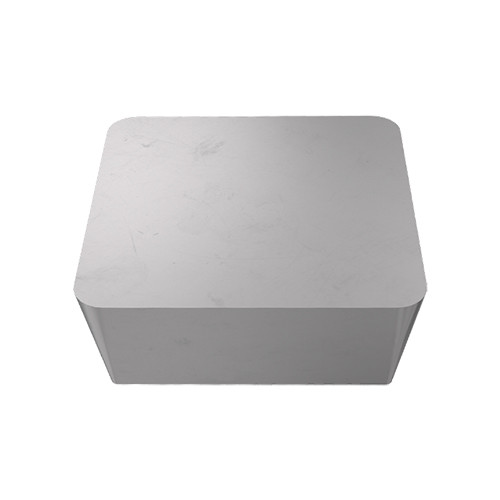

SPGN 120312 T01020 IN18
Positive square ceramic inserts for machining cast iron and hardened steel
| Applicable Material | | Cast Iron | Hard Materials | | Min D.O.C. | 0.3 mm |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 1.2 mm | Min. Turning Feed (ft(min)) | 0.06 mm/rev |
| Insert Size | 23 T04 | Max. Turning Feed (ft(max)) | 0.44 mm/rev |
| Insert Thickness (S) | 3.18 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Grade | IN18 | Unit | M |
| Tool Type | Turn Ultra hard Inserts |
Product Features
| Family Description | Positive square ceramic inserts for machining cast iron and hardened steel | FamilyName | SPGN (CER) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0041
Name
Turning Indexable Inserts
FamilyName
SPGN (CER)
BrandName
Iscar
