ERP D075A100-05-C1.00-06
Endmills carrying single-sided ceramic round inserts

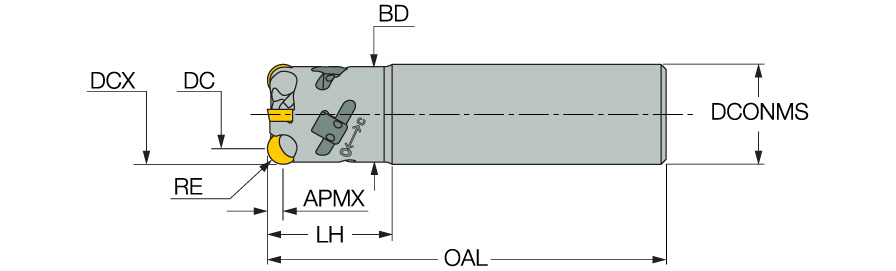

| Cutting Diameter (DC/DCX) | 1″ | Master Insert Identification (MIID) | RPG 21.5 |
| Cutting Diameter (DC) | 3/4″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1″ | Application | | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | |
| Cutting Item Count (CICT) | 5 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.059″ | Shank Type | Round |
| Overall Length (OAL) | 4″ | Unit | I |
Product Features
| Family Description | Endmills carrying single-sided ceramic round inserts | FamilyName | ERP |
| Remarks | For adaptation, click on More Info. When milling deep pockets in high temperature alloys by use of helical interpolation, it is recommended to set the stepdown up to .04 for efficient chip evacuation. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.8642
Name
Indexable Face Mills
FamilyName
ERP
BrandName
Iscar
