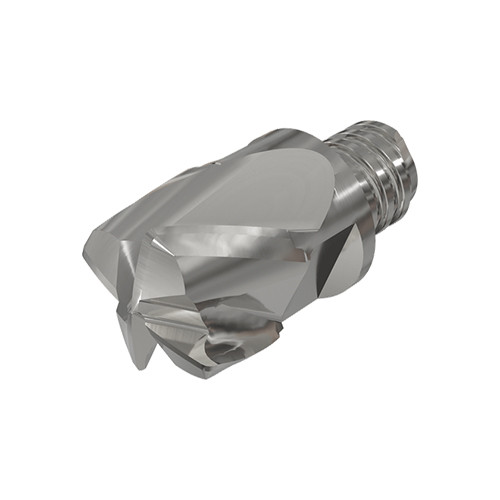

MM ELBA375R750A27-4T06 IC08
Interchangeable lens-shaped (Barrel) solid carbide heads for 3D aluminum profiling.For semi-finish & finishing applications.

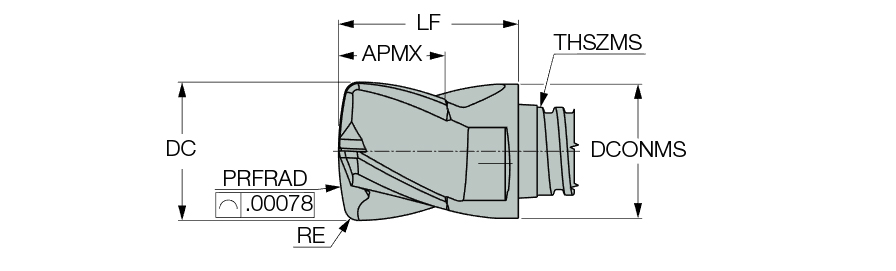

| Application | | Profiling | | Overall Length (OAL) | 0.774″ |
| Cutting Diameter (DC) | 3/8″ | Grade | IC08 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Corner Radius (RE) | 0.039″ | Maximum Feed per Tooth (fz(max)) | 0.006 ″/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.0548″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Minimum Feed per Tooth (fz(min)) | 0.0012 ″/tooth |
| Functional Length (LF) | 0.512″ | Unit | I |
Product Features
| Family Description | Interchangeable lens-shaped (Barrel) solid carbide heads for 3D aluminum profiling.For semi-finish & finishing applications. | FamilyName | MM ELBA |
| Remarks | For tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0408
Name
Solid End Mill Heads
FamilyName
MM ELBA
BrandName
Iscar
