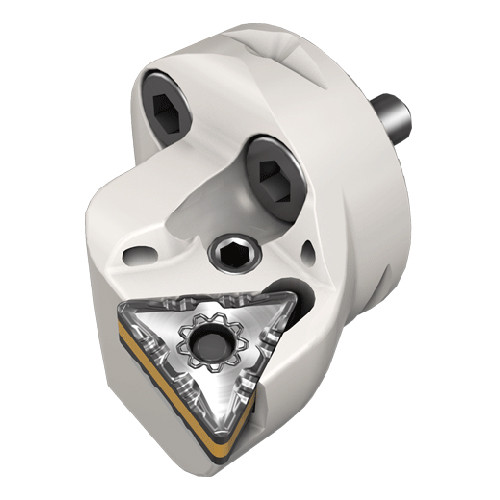

AVC-D40-PTLNR-16
Interchangeable Boring Heads Carrying 60° Triangular Inserts
| Functional Length (LF) | 35 mm | Application | | Int. 60° Triangle 95° Approach | |
| Functional Width (WF) | 27 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 50 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | Interchangeable Boring Heads Carrying 60° Triangular Inserts | FamilyName | AVC-PTLNR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2230
Name
General Indexable Turning Tools
FamilyName
AVC-PTLNR/L
BrandName
Iscar
