| Applicable Material | | Steel | Cast Iron | | Grade | IC8150 |
| Application | | Ext. Tangential 84° Approach | Ext. Tangential 93° Approach | | Fixing Hole Diameter (D1) | 7.8 mm |
| Insert Style | CNMX | Tool Type | Turn Negative Inserts |

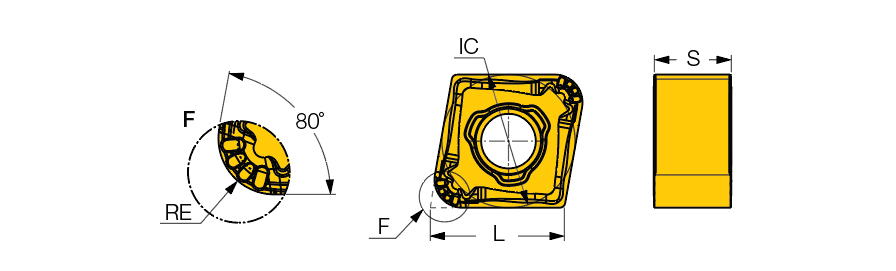

| Corner Radius (RE) | 4 mm | Min D.O.C. | 3 mm |
| Insert Size | 191140 | Depth of Cut Maximum (APMX) | 6 mm |
| Cutting Edge Length (L) | 19.34 mm | Min. Turning Feed (ft(min)) | 0.3 mm/rev |
| Insert Thickness (S) | 11 mm | Max. Turning Feed (ft(max)) | 1.5 mm/rev |
| Inscribed Circle Diameter (IC) | 19.05 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiCN+TiN | Unit | M |
Product Features
| Family Description | double-sided 80° rhombic inserts, used for railroad wheel re-turning. | FamilyName | CNMX-M3P/R3P |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0487
Name
Turning Indexable Inserts
FamilyName
CNMX-M3P/R3P
BrandName
Iscar
