| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | SNGN 1207 |
| Shank Width (B) | 25 mm | Application | | Ext. 90° Square 75° Face Appr. | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 34 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features

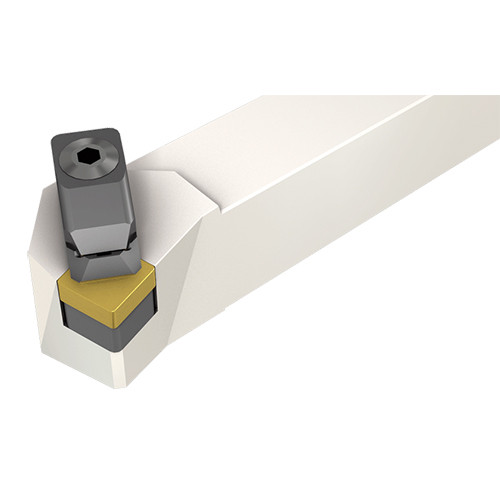

| Family Description | Clamp lock 75° entering angle tools carrying square ceramic inserts for face turning | FamilyName | CSKNR/L-F/X |
| COO | Spain | BrandName | Iscar |
Shipping Info
Weight per item
0.8000
Name
General Indexable Turning Tools
FamilyName
CSKNR/L-F/X
BrandName
Iscar
LocalField3
8466100130
