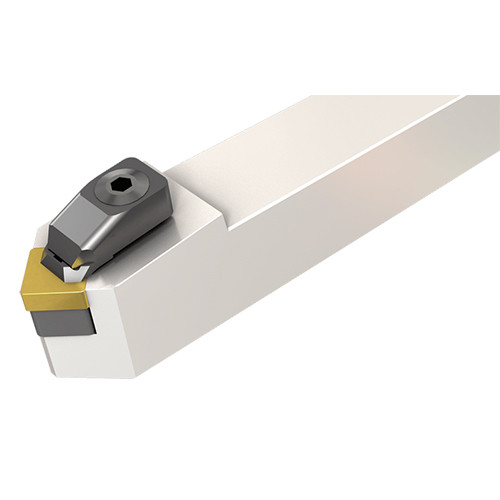

CSDNN 2525M-1207F
Clamp lock 45° lead angle tools carrying square ceramic inserts
| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | SNGN 1207 |
| Shank Width (B) | 25 mm | Application | | Ext. 90° Square 45° Approach | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 42 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 12.5 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Unit | M |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Clamp lock 45° lead angle tools carrying square ceramic inserts | FamilyName | CSDNN-F/X |
| COO | Spain | BrandName | Iscar |
Shipping Info
Weight per item
0.7460
Name
General Indexable Turning Tools
FamilyName
CSDNN-F/X
BrandName
Iscar
