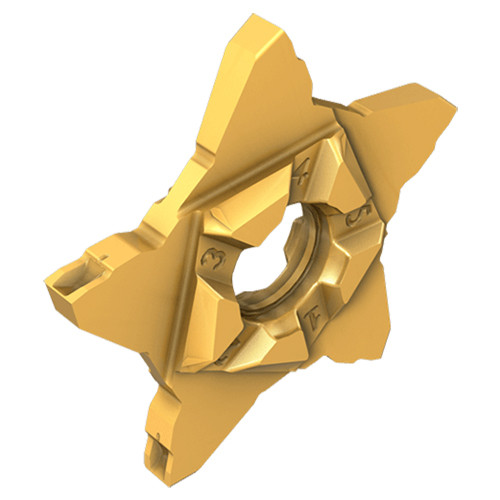

PENTA 24N300C020SL IC808G
First choice for the parting of bars, hard materials, and tough applications with a negative cutting rake angle

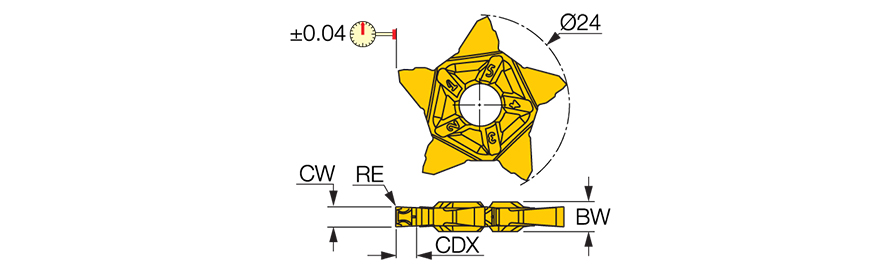

| Cutting Width (CW) | 3 mm | Max. Grooving Feed (fg(max)) | 0.2 mm/rev |
| Corner Radius (RE) | 0.2 mm | Min. Grooving Feed (fg(min)) | 0.06 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.03 mm | Chip Breaker Type | J |
| Cutting Depth Maximum (CDX) | 6.2 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808G | Cutting Width Tolerance (+/-) (CWTOL) | 0.02 mm |
| Cutting Direction (HAND) | Neutral | Insert Width (W1) | 4 mm |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | First choice for the parting of bars, hard materials, and tough applications with a negative cutting rake angle | FamilyName | PENTA 24N-C-SL |

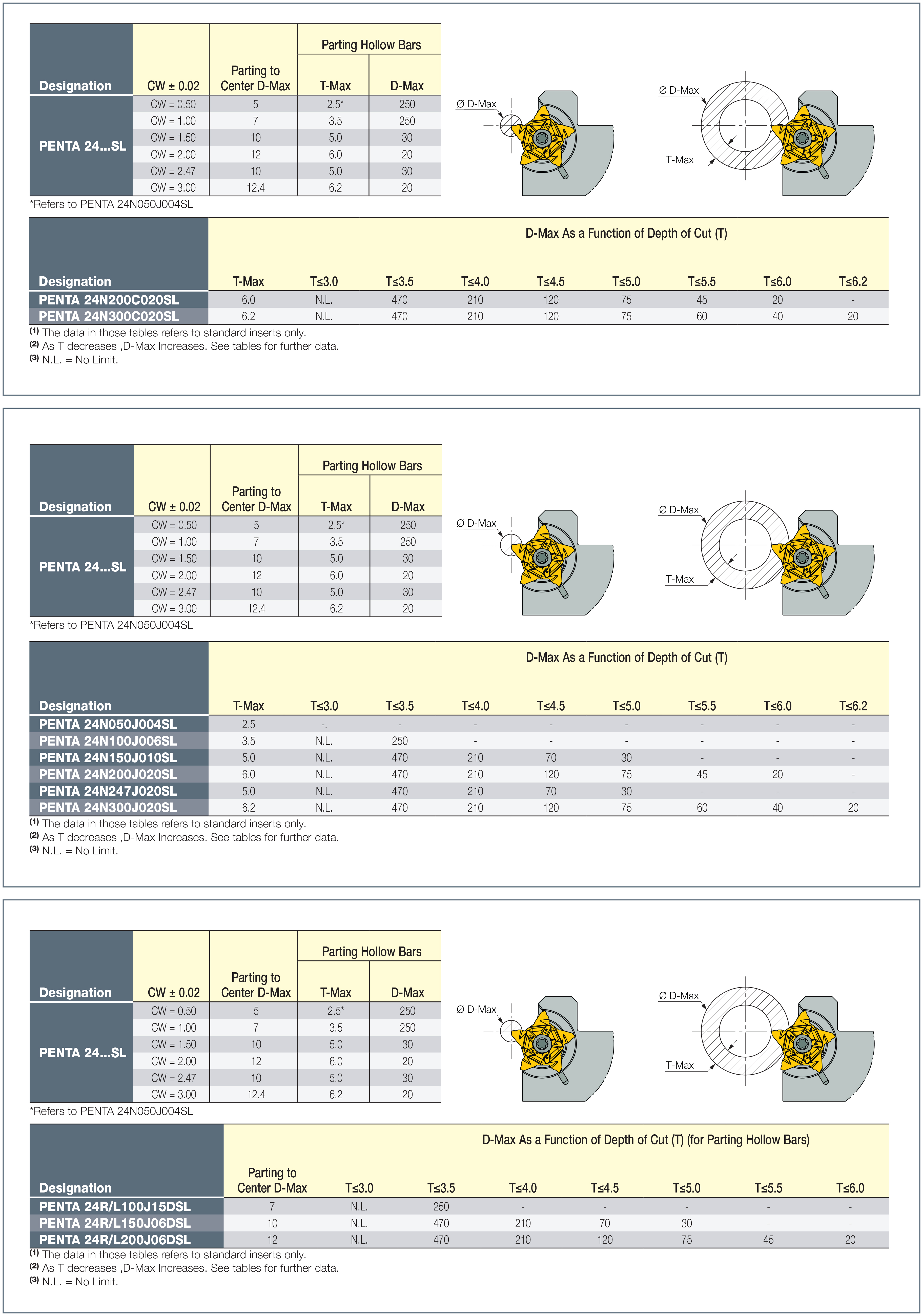

| Remarks | CUTDIA as a function of depth of cut (CDX). For parting and grooving range, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0022
Name
Parting Off Indexable Inserts
FamilyName
PENTA 24N-C-SL
BrandName
Iscar
