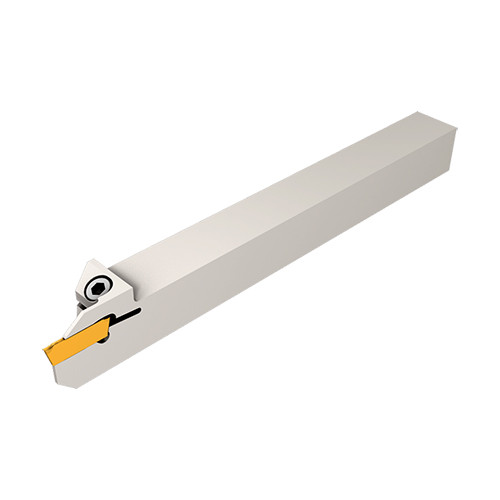

DGTR 12.7B-0.8-D12SH
Parting and grooving short head tools for CNC and Swiss automatics.

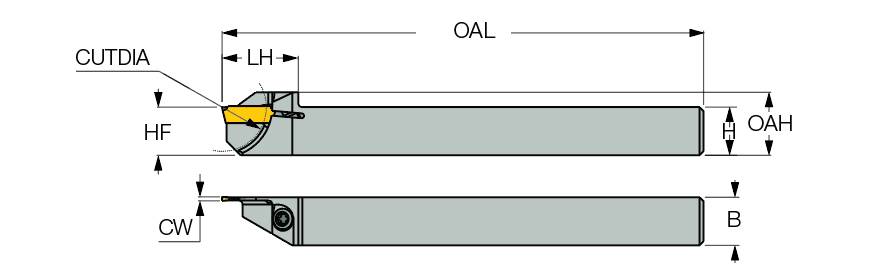

| Shank Height (H) | 1/2″ | Tool Type | Parting & Grooving Tools |
| Shank Width (B) | 1/2″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.472″ |
| Overall Length (OAL) | 4.724″ | Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 0.673″ | Measurement Type | Inch |
| Overall Height (OAH) | 0.618″ | Tool Assembly Length (LTA) | 27″ |
| Application | | Ext. Grooving | Parting | | Unit | I |
| Body Material | Steel |
Product Features
| Family Description | Parting and grooving short head tools for CNC and Swiss automatics. | FamilyName | DGTR/L-B-D-SH (NARROW CUT) |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.3968
Name
Parting Off Indexable Holders
FamilyName
DGTR/L-B-D-SH (NARROW CUT)
BrandName
Iscar
