DNGN 150708 T02020 IW10

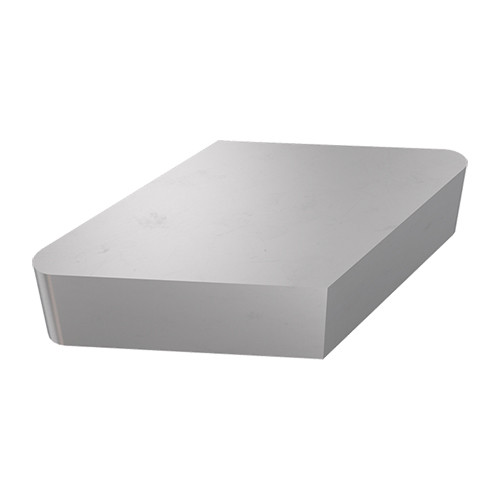

Negative 55° rhombic double-sided ceramic inserts for machining cast iron and hardened steel
| Applicable Material | | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 0.2 mm |
| Insert Style | DNG | Depth of Cut Maximum (APMX) | 3.5 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 52 T08 | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Cutting Edge Length (L) | 15.5 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 7.94 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Body Material | Carbide |
| Cutting Edge Material | Whiskers | Unit | M |
| Grade | IW10 |
Product Features
| Family Description | Negative 55° rhombic double-sided ceramic inserts for machining cast iron and hardened steel | FamilyName | DNGN (CER) |
| COO | Japan | BrandName | Iscar |
Shipping Info
Weight per item
0.0107
Name
Turning Indexable Inserts
FamilyName
DNGN (CER)
BrandName
Iscar
