| Overall Length (OAL) | 112 mm | Application | | High Feed and Diverse Turning Direction Applicatio | ISO 26623 1 (CAMFIX) | |
| Functional Length (LF) | 80 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Tool Type | Tapered Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 16 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Unit | M |
| Master Insert Identification (MIID) | Q3-MCMT1606 |
Product Features

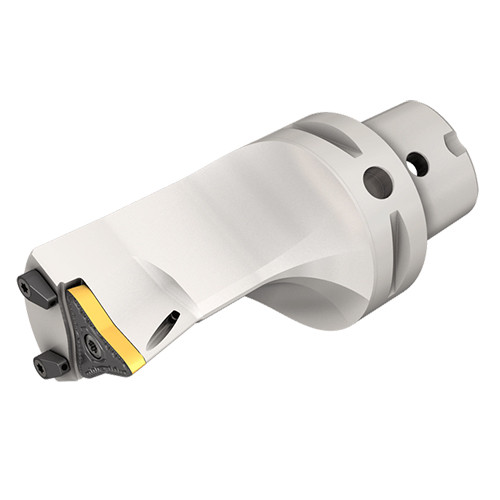

| Family Description | Y-Axis Turning Tools with safety lock clamping mechanism for positive inserts, 3 grooves on the pocket and a matching ridge at the insert bottom ensured fixed location and high stability at a very high feed rate. | FamilyName | C#-Q3-SMXCN-SL-Y |
| Remarks | For Depth of cut vs. position angle examples click on More Info A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.0490
Name
General Indexable Turning Tools
FamilyName
C#-Q3-SMXCN-SL-Y
BrandName
Iscar
