MTECK 10096D24 1.75ISO IC908
Solid carbide internal threading endmill step release, lead x2 with coolant hole, used for ISO thread profile.

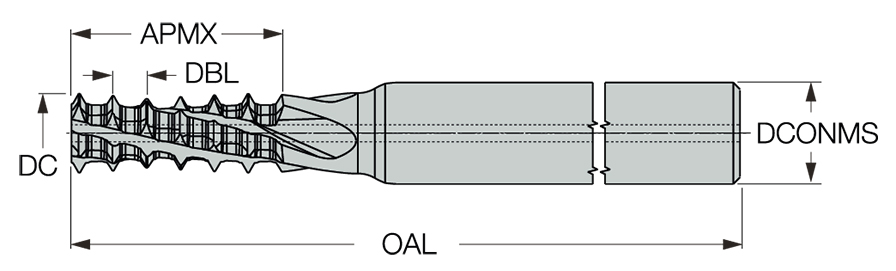

| Thread Size | M12 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1.75 mm | Cutting Edge Material | Carbide |
| Thread Standard | MC |THFT | | Usable Length (LU) | 25.3 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 9.6 mm | Grade | IC908 |
| Overall Length (OAL) | 73 mm | Tool Type | Solid carbide thread mills |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | | Unit | M |
Product Features
| Family Description | Solid carbide internal threading endmill step release, lead x2 with coolant hole, used for ISO thread profile. | COO | Israel |
Shipping Info
Weight per item
0.0720
