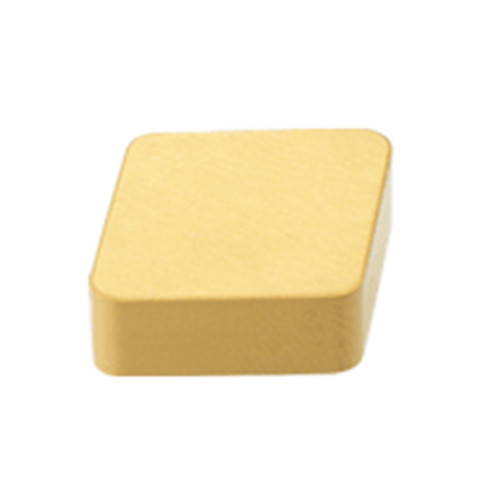

CNGN 120408 E004 IS15
Negative 80° rhombic double-sided ceramic inserts for machining cast iron, hardened steel and heat-resistant alloys
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 80° Diamond 95° Approach | | Min D.O.C. | 0.2 mm |

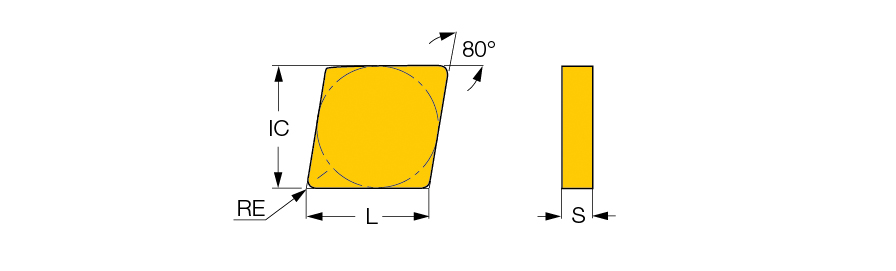

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Insert Size | 32 E02 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Max. Turning Feed (ft(max)) | 0.19 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Grade | IS15 | Unit | M |
Product Features
| Family Description | Negative 80° rhombic double-sided ceramic inserts for machining cast iron, hardened steel and heat-resistant alloys | FamilyName | CNGN (CER) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0047
Name
Turning Indexable Inserts
FamilyName
CNGN (CER)
BrandName
Iscar
