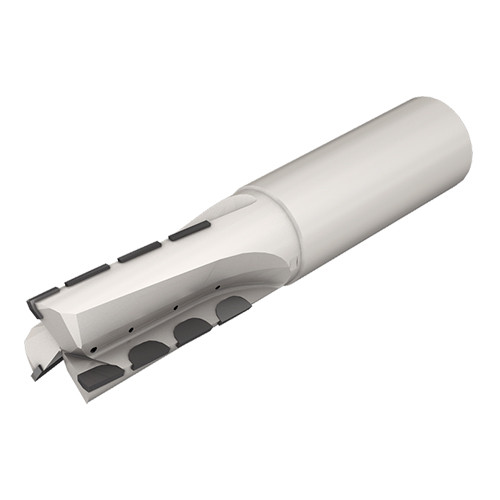

SMN D16-03-30C16-R-BRR02 ID8
Extended flute PCD endmills for high speed machining of aluminum, CFRP, graphite with IT.TE.DI. tools
| Cutting Diameter (DC) | 16 mm | Head Length (LH) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Depth of Cut Maximum (APMX) | 30 mm | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Overall Length (OAL) | 100 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Shank Type | Round | Body Material | Steel |
| End Shape | Square | Measurement Type | Metric |
| Usable Length (LU) | 30 mm | Unit | M |
| Application | | Shouldering | Slotting | |
Product Features
| Family Description | Extended flute PCD endmills for high speed machining of aluminum, CFRP, graphite with IT.TE.DI. tools | FamilyName | SMN D-03-30C IT |
| COO | Italy | BrandName | Iscar |
Shipping Info
Name
Square & Corner Radius End Mills
FamilyName
SMN D-03-30C IT
BrandName
Iscar
