SEHFD04Z01CM05L10C01 ID8

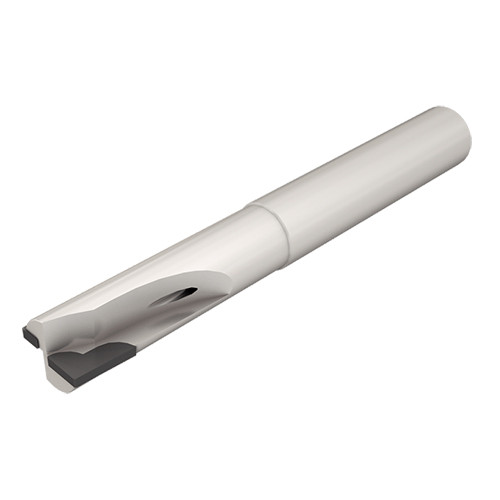

PCD endmills for high speed machining of aluminum, CFRP, graphite with IT.TE.DI. tools

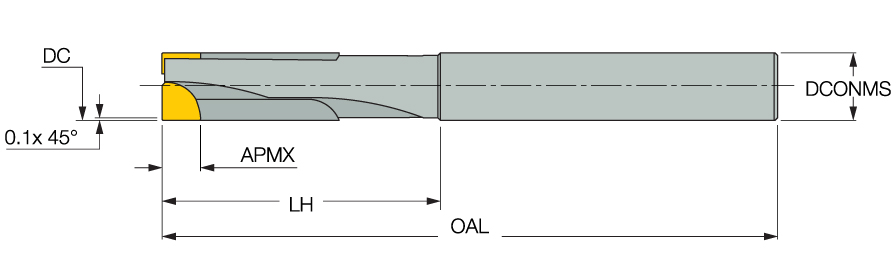

| Cutting Diameter (DC) | 4 mm | Head Length (LH) | 36 mm |
| Connection Diameter Machine Side (DCONMS) | 5 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Depth of Cut Maximum (APMX) | 10 mm | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Overall Length (OAL) | 67 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Shank Type | Round | Body Material | Steel |
| End Shape | Square | Measurement Type | Metric |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | | Unit | M |
Product Features
| Family Description | PCD endmills for high speed machining of aluminum, CFRP, graphite with IT.TE.DI. tools | FamilyName | SEHFD IT |
| COO | Italy | BrandName | Iscar |
Shipping Info
Name
Square & Corner Radius End Mills
FamilyName
SEHFD IT
BrandName
Iscar
