SMN D040-03-40BT40R-BRR02 ID8

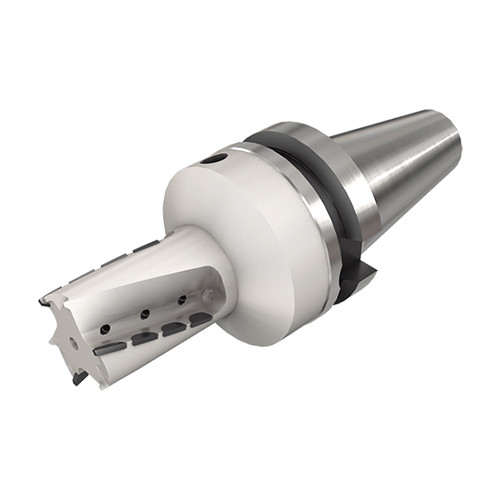

Extended flute endmills with BT MAS-403 tapered shanks on which brazed PCD inserts are mounted for machining aluminum at high rotational speeds with IT.TE.DI. tools

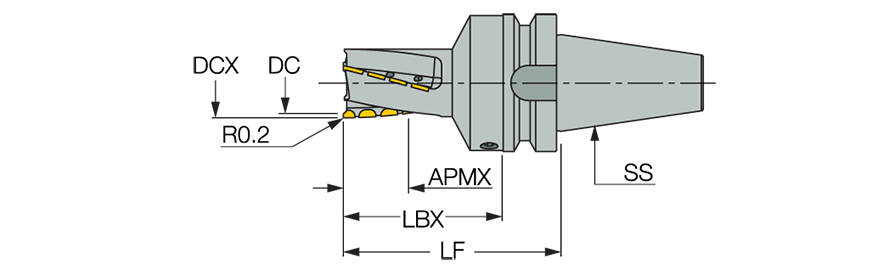

| Cutting Diameter (DC/DCX) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 39.6 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 40 mm | Application | | Shouldering | Slotting | |
| Cutting Item Count (CICT) | 3 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 40 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 40 |
Product Features
| Family Description | Extended flute endmills with BT MAS-403 tapered shanks on which brazed PCD inserts are mounted for machining aluminum at high rotational speeds with IT.TE.DI. tools | FamilyName | SMN D-BT40 IT |
| COO | Italy | BrandName | Iscar |
Shipping Info
Name
Indexable Face Mills
FamilyName
SMN D-BT40 IT
BrandName
Iscar
