GQHINL 16C-16.5-20
Internal grooving and turning bars on which inserts with 4 cutting edges are mounted.

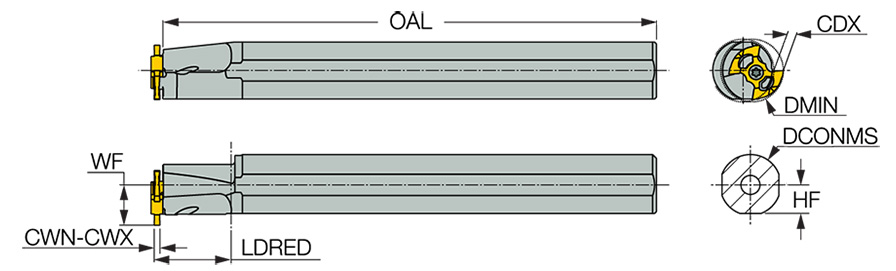

| Cutting Width Minimum (CWN) | 1 mm | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Width Maximum (CWX) | 3 mm | Application | | Int. Groove & Turn | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 2.5 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 16.5 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 10.6 mm | Measurement Type | Metric |
| Head Length (LH) | 20 mm | Unit | M |
| Overall Length (OAL) | 130 mm |
Product Features
| Family Description | Internal grooving and turning bars on which inserts with 4 cutting edges are mounted. | FamilyName | GQHINR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2040
Name
Groove/Turn Indexable Holders
FamilyName
GQHINR/L
BrandName
Iscar
