MT TNCT 11U 60D 908
60° partial profile laydown U-type thread milling inserts, for general industry
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

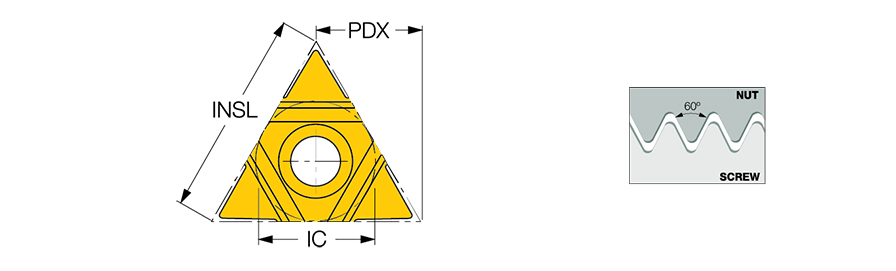

| Inscribed Circle Diameter (IC) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Insert Length (INSL) | 11 mm | Threads per Inch Minimum (TPIN) | 6 |
| Thread Pitch (TP) | 0 mm | Threads per Inch Maximum (TPIX) | 10 |
| Threads per Inch (TPI) | 0 | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | VP60 |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | External Thread Milling | Internal Thread Milling | | Profile Distance EY (PDY) | 0 mm |
Product Features
| Family Description | 60° partial profile laydown U-type thread milling inserts, for general industry | FamilyName | MT TNCT-U60 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0028
Name
Laydown Threading Indexable Inserts
FamilyName
MT TNCT-U60
BrandName
Iscar
