MTECBF 16116F26 12UN IC908

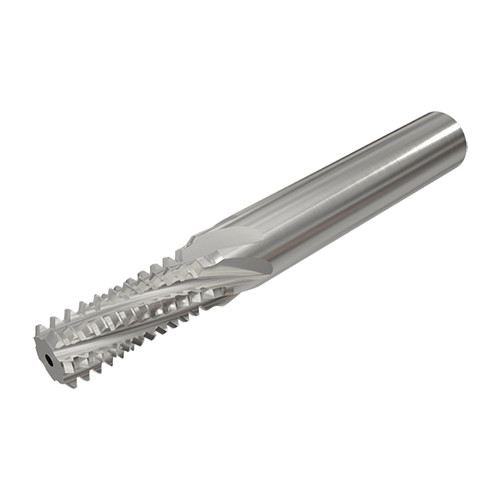

Solid carbide internal threading endmills with a coolant hole. Intended for UN thread profile.

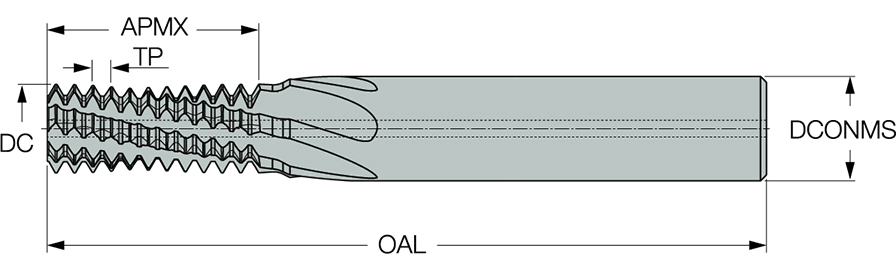

| Thread Size | 5/8 | Application | | Internal Thread Milling | Solid Tools | |
| Thread Pitch (TP) | 2.117 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 12 Threads/" | Cutting Edge Material | Carbide |
| Thread Standard | UNC |UNF | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Grade | IC908 |
| Cutting Diameter (DC) | 11.6 mm | Tool Type | Solid carbide thread mills |
| Overall Length (OAL) | 105 mm | Depth of Cut Maximum (APMX) | 26.4 mm |
| Flute Count (NOF) | 6 | Body Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Unit | M |
| Coating | TiAlN |
Product Features
| Family Description | Solid carbide internal threading endmills with a coolant hole. Intended for UN thread profile. | COO | Israel |
| Remarks | Internal & External tolerance: ISO 228-1 - Medium class |
Shipping Info
Weight per item
0.1620
