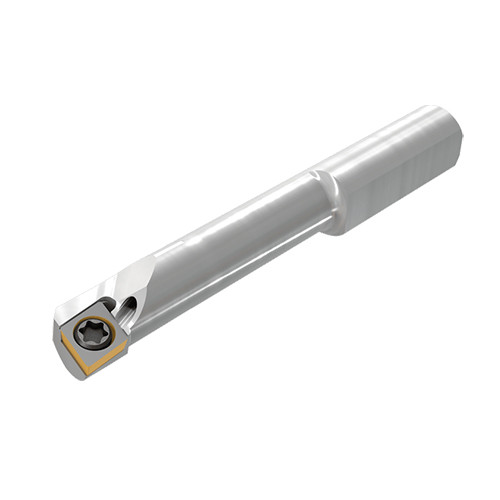

PICIN A06-T15-SCLCL-03
PICCO tools on which 80° rhombic inserts are mounted
| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Height (H) | 5.4 mm |
| Minimum Bore Diameter (DMIN) | 6 mm | Body Material | Steel |
| Functional Length (LF) | 30 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Cutting Direction (HAND) | Left Hand | Rake Angle Radial (GAMF) | 15 Degrees |
| Application | | Int. 80° Diamond 95° Approach | | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 2.25 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | CCGT 03X101-F1P | Unit | M |
| Usable Length (LU) | 15 mm |
Product Features
| Family Description | PICCO tools on which 80° rhombic inserts are mounted | FamilyName | PICIN-A-SCLCR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0220
Name
Solid Boring Bars
FamilyName
PICIN-A-SCLCR/L
BrandName
Iscar
