| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Positive Inserts |
| Application | | Ext. Round Face & Turn | | Min D.O.C. | 0.05 mm |
| Insert Style | RCGN | Depth of Cut Maximum (APMX) | 4 mm |
| Insert Size | 420F-H | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | PCD | Body Material | Carbide |
| Grade | ID8 | Unit | M |
Product Features

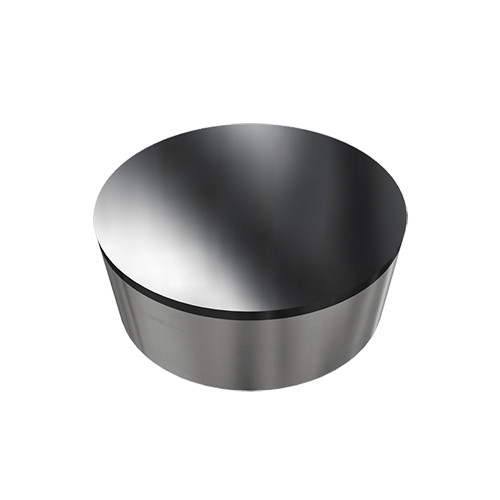

| Family Description | Positive round type half solid top PCD inserts | FamilyName | RCGN HS (PCD) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
0.0150
Name
Turning Indexable Inserts
FamilyName
RCGN HS (PCD)
BrandName
Iscar
