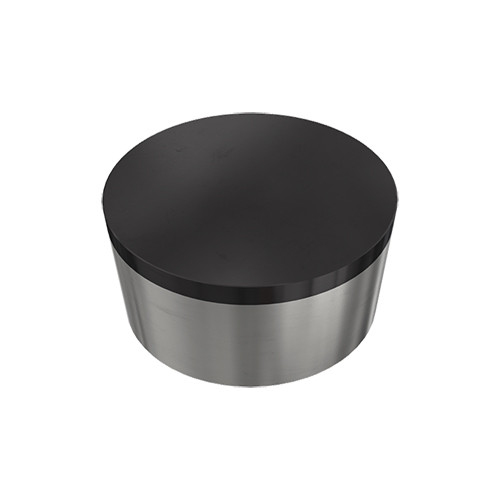

RBGN 090300S-HS BI15H
Positive round type half solid top CBN inserts
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.05 mm |
| Application | | Ext. Round Face & Turn | | Depth of Cut Maximum (APMX) | 0.5 mm |
| Insert Style | RBGN | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 090300 | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 3.18 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Grade | BI15H | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Unit | M |
Product Features
| Family Description | Positive round type half solid top CBN inserts | FamilyName | RBGN HS (CBN) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Name
Turning Indexable Inserts
FamilyName
RBGN HS (CBN)
BrandName
Iscar
