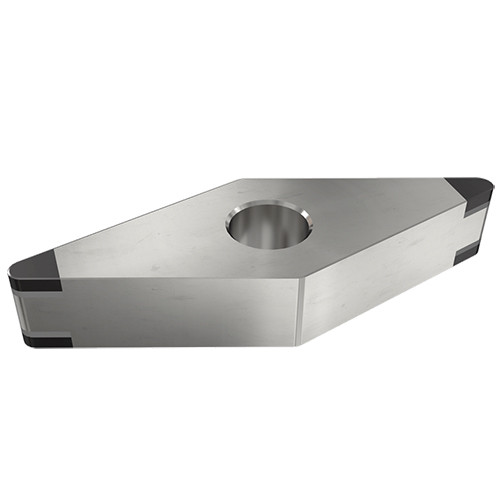

VNGA 160408S-4MT BI30HC
Negative 35° rhombic inserts with 4 single CBN mini tips for hardened steel and cast iron
| Applicable Material | | Cast Iron | Hard Materials | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | VNGA | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 0.3 mm |
| Insert Size | 332S-4 | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 16.6 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.52 mm | Body Material | Carbide |
| Cutting Edge Material | PCBN | Unit | M |
| Grade | BI30HC |
Product Features
| Family Description | Negative 35° rhombic inserts with 4 single CBN mini tips for hardened steel and cast iron | FamilyName | VNGA 4MT (CBN) |
| COO | Germany | BrandName | Iscar |
Shipping Info
Weight per item
0.0210
Name
Turning Indexable Inserts
FamilyName
VNGA 4MT (CBN)
BrandName
Iscar
