| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 5.5 mm |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | SNGA | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Insert Size | 120412 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 12.7 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Body Material | Carbide |
| Cutting Edge Material | PCBN | Unit | M |
| Grade | BI25H |
Product Features

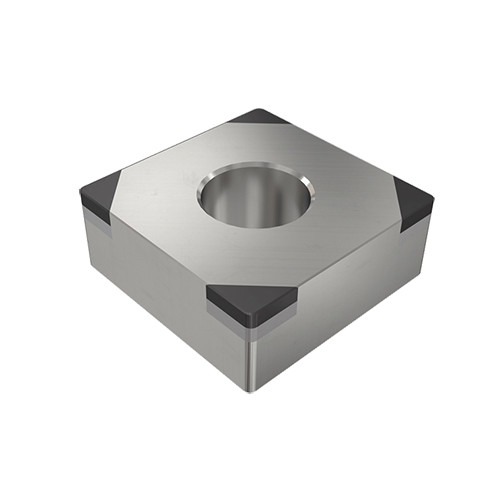

| Family Description | Negative square inserts with single 4 CBN mini tips for hardened steel and cast iron | FamilyName | SNGA 4MT (CBN) |
| COO | Germany | BrandName | Iscar |
Shipping Info
Name
Turning Indexable Inserts
FamilyName
SNGA 4MT (CBN)
BrandName
Iscar
