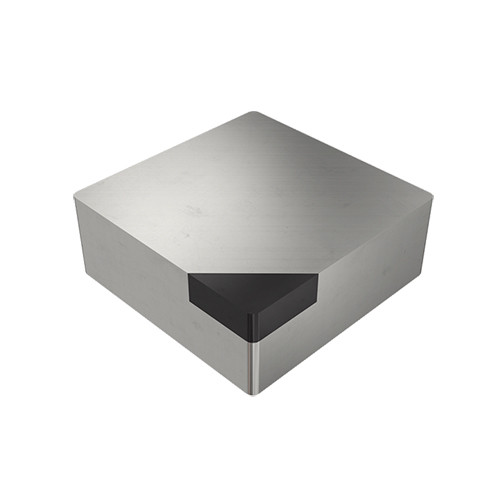

SNGN 090304S BI15HC
Negative square inserts with single CBN top corner tip for hardened steels and cast iron
| Applicable Material | | Hard Materials | | Grade | BI15HC |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | | Tool Type | Turn Positive Inserts |
| Insert Style | SNGN | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Insert Size | 090304 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 9.52 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.52 mm | Body Material | Carbide |
| Cutting Edge Material | PCBN | Unit | M |
Product Features
| Family Description | Negative square inserts with single CBN top corner tip for hardened steels and cast iron | FamilyName | SNGN (CBN) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Name
Turning Indexable Inserts
FamilyName
SNGN (CBN)
BrandName
Iscar
