DPGW 070202F ID5

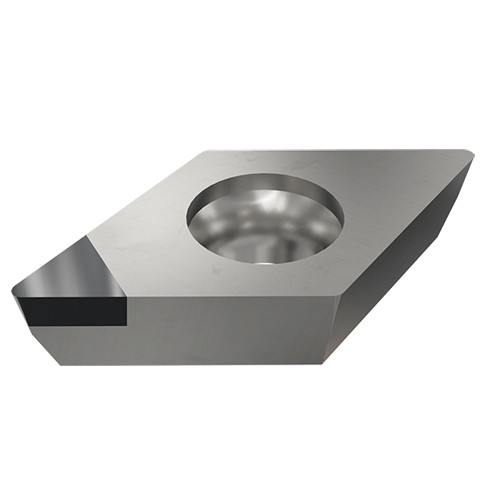

Positive 55° rhombic inserts with single PCD top corner tip, used for finishing aluminum and other non-ferrous materials.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 2.8 mm |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Tool Type | Turn Positive Inserts |
| Insert Style | DPGW | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Insert Size | 21.50. | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 7.75 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Insert Thickness (S) | 2.38 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm | Body Material | Carbide |
| Cutting Edge Material | PCD | Unit | M |
| Grade | ID5 |
Product Features
| Family Description | Positive 55° rhombic inserts with single PCD top corner tip, used for finishing aluminum and other non-ferrous materials. | FamilyName | DPGW (PCD) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Name
Turning Indexable Inserts
FamilyName
DPGW (PCD)
BrandName
Iscar
