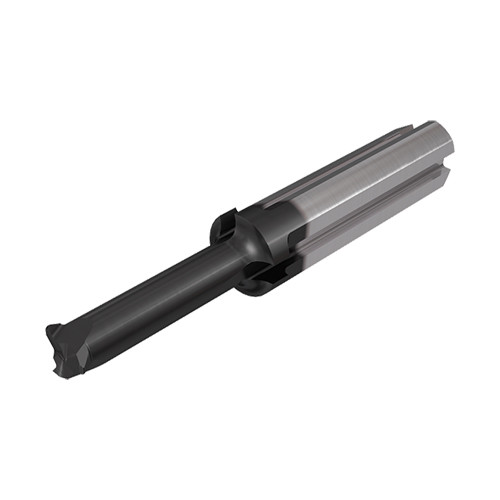

PMC LT20D60R15-25 IC908
Inserts with three cutting edges for internal turning and chamfering

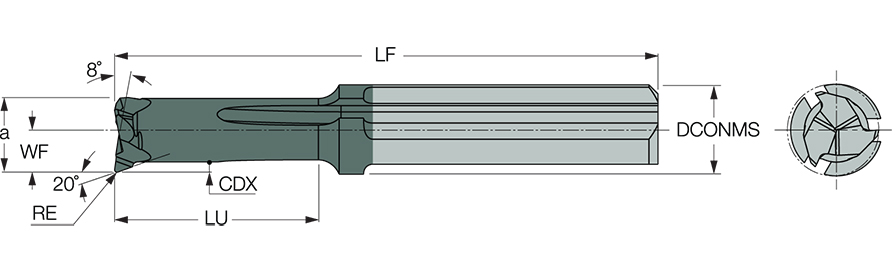

| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.15 mm | Application | | Int. Boring and Profiling | |
| Cutting Depth Maximum (CDX) | 0.5 mm | Tool Type | Solid, Turning & Grooving |
| Overall Length (OAL) | 40 mm | Minimum Bore Diameter (DMIN) | 6 mm |
| Cutting Direction (HAND) | Left Hand | Front End Width (a) | 5 mm |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | M |
Product Features
| Family Description | Inserts with three cutting edges for internal turning and chamfering | FamilyName | PMC R/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0130
Name
Solid and Brazed Groove/Turn & Part Off
FamilyName
PMC R/L
BrandName
Iscar
