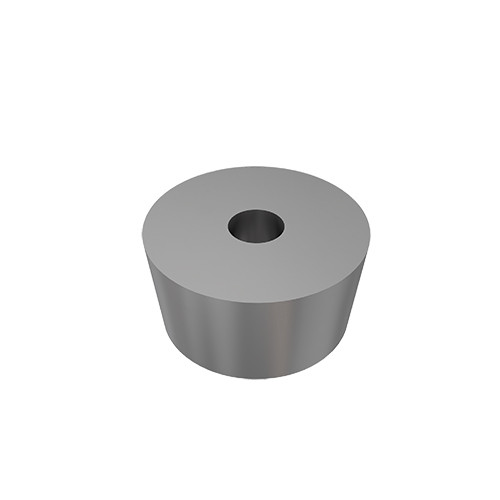

CDH 3209 P20015 IN16
Ceramic inserts for maching mill rolls and heat-resistant alloys
| Applicable Material | | Hard Materials | | Min D.O.C. | 3 mm |
| Application | | Ext. Round Face & Turn | | Depth of Cut Maximum (APMX) | 10 mm |
| Insert Size | 15 P80 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 9.52 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Inscribed Circle Diameter (IC) | 31.75 mm | Clearance Angle Major (AN) | 6 Degrees |
| Cutting Edge Material | Ceramic | Measurement Type | Metric |
| Grade | IN16 | Body Material | Carbide |
| Tool Type | Turn Ultra hard Inserts | Unit | M |
Product Features
| Family Description | Ceramic inserts for maching mill rolls and heat-resistant alloys | FamilyName | CDH (CER) |
| COO | Japan | BrandName | Iscar |
Shipping Info
Weight per item
0.0343
Name
Turning Indexable Inserts
FamilyName
CDH (CER)
BrandName
Iscar
