| Applicable Material | | Cast Iron | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Min D.O.C. | 0.2 mm |

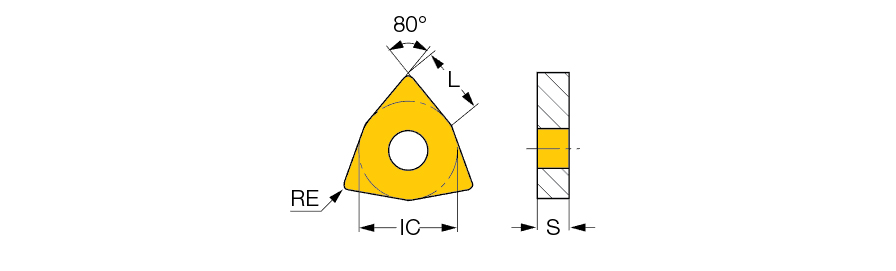

| Insert Style | WNGA | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Size | 080408 | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Cutting Edge Length (L) | 8.7 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Grade | IS45C | Unit | M |
Product Features
| Family Description | Negative 80° trigon double-sided ceramic inserts for machining cast iron, hardened steel and heat-resistant alloys | FamilyName | WNGA (CER) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0044
Name
Turning Indexable Inserts
FamilyName
WNGA (CER)
BrandName
Iscar
