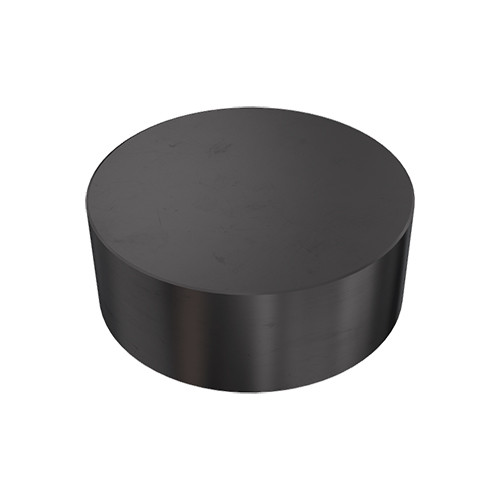

RNGN 120400S-S BI30K
Negative round type solid CBN inserts for cast iron machining
| Applicable Material | | Cast Iron | | Tool Type | Turn Positive Inserts |
| Application | | Ext. Round Face & Turn | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | | Min D.O.C. | 0.05 mm |
| Insert Style | RNGN | Depth of Cut Maximum (APMX) | 5 mm |
| Insert Size | 430S-S | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | PCBN | Body Material | Carbide |
| Grade | BI30K | Unit | M |
Product Features
| Family Description | Negative round type solid CBN inserts for cast iron machining | FamilyName | RNGN S (CBN) |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.0130
Name
Turning Indexable Inserts
FamilyName
RNGN S (CBN)
BrandName
Iscar
