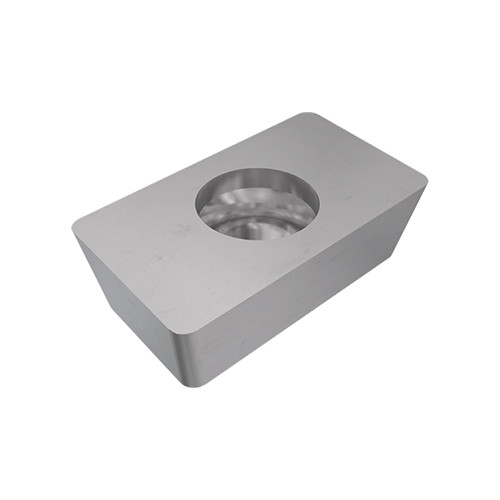

APCW 160420 T01020 IS45C
Radial clamped ceramic insert. used for high-speed machining gray and nodular cast iron. peripherally ground insert for high accuracy, provides excellent surface finish.
| Applicable Material | | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Shouldering | Slotting | | Cutting Edge Material | Ceramic |

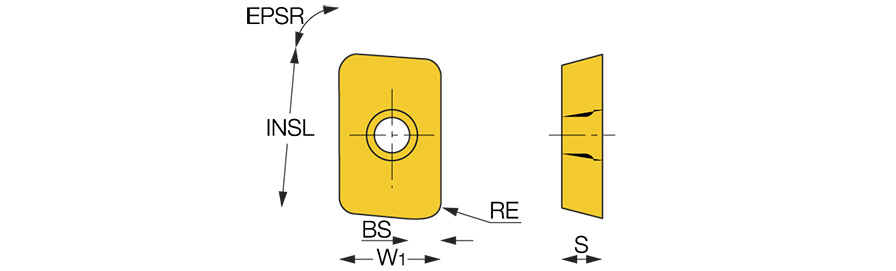

| Insert Length (INSL) | 16.46 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Corner Radius (RE) | 2 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Insert Width (W1) | 9.53 mm | Measurement Type | Metric |
| Insert Thickness (S) | 4.76 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 85 Degrees | Unit | M |
| Grade | IS45C |
Product Features
| Family Description | Radial clamped ceramic insert. used for high-speed machining gray and nodular cast iron. peripherally ground insert for high accuracy, provides excellent surface finish. | FamilyName | APCW 1604 (CER) |
| COO | Japan | BrandName | Iscar |
Shipping Info
Weight per item
0.0039
Name
Milling Indexable Inserts
FamilyName
APCW 1604 (CER)
BrandName
Iscar
