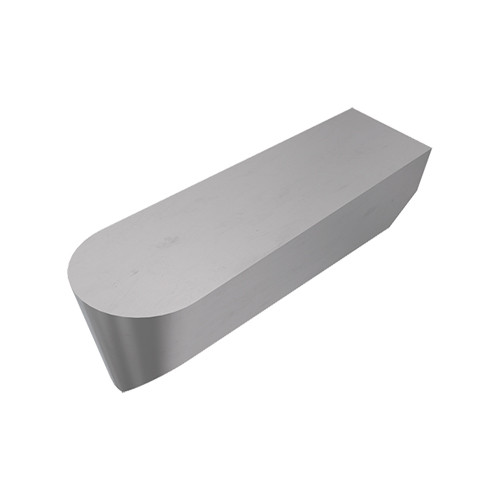

GCP 3.96-1.98 E004 IS45
Full radius grooving & turning ceramic inserts for machining heat-resistant alloys
| Cutting Width (CW) | 3.96 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | |
| Corner Radius (RE) | 1.98 mm | Applicable Material | | Cast Iron | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 11 Degrees | Measurement Type | Metric |
| Insert Thickness (S) | 4.51 mm | Tool Type | Parting & Grooving Inserts |
| Insert Length (INSL) | 12.7 mm | Body Material | Carbide |
| Grade | IS45 | Unit | M |
| Cutting Edge Material | Ceramic |
Product Features
| Family Description | Full radius grooving & turning ceramic inserts for machining heat-resistant alloys | FamilyName | GCP-R (CER) |
| Remarks | E004 - Honing size 0.04mm | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0026
Name
Groove/Turn Indexable Inserts
FamilyName
GCP-R (CER)
BrandName
Iscar
