RCGX 060600 T01020 IS15
Positive round ceramic inserts for machining cast iron, hardened steel, and heat-resistant alloys
| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.2 mm |
| Application | | Ext. Round Face & Turn | | Depth of Cut Maximum (APMX) | 1.5 mm |
| Insert Style | RCGX | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 24 T04 | Max. Turning Feed (ft(max)) | 0.45 mm/rev |

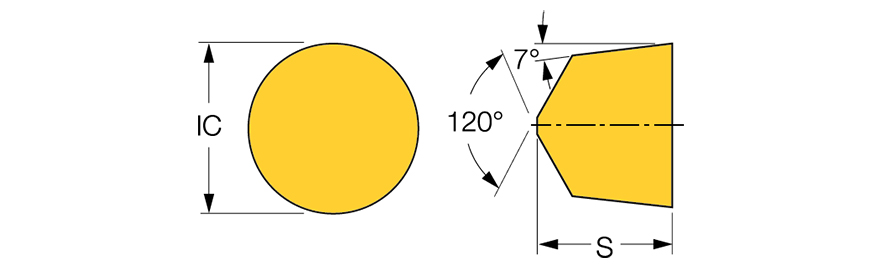

| Insert Thickness (S) | 6.35 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | W |
| Cutting Edge Material | Ceramic | Measurement Type | Metric |
| Grade | IS15 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Unit | M |
Product Features
| Family Description | Positive round ceramic inserts for machining cast iron, hardened steel, and heat-resistant alloys | FamilyName | RCGX (CER) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0026
Name
Turning Indexable Inserts
FamilyName
RCGX (CER)
BrandName
Iscar
