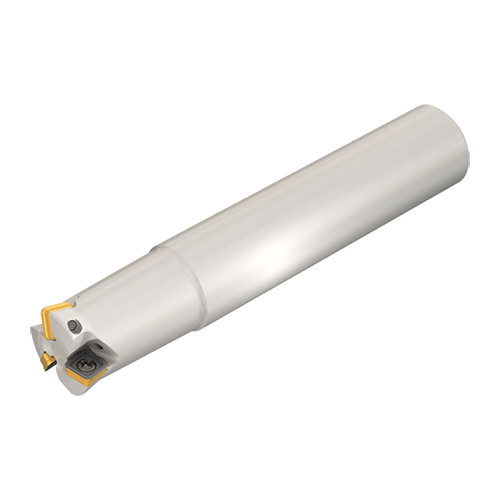

FFQ4 D1.00-05-W1.0-06
Fast feed endmills carrying single-sided square Inserts with 4 cutting edges.

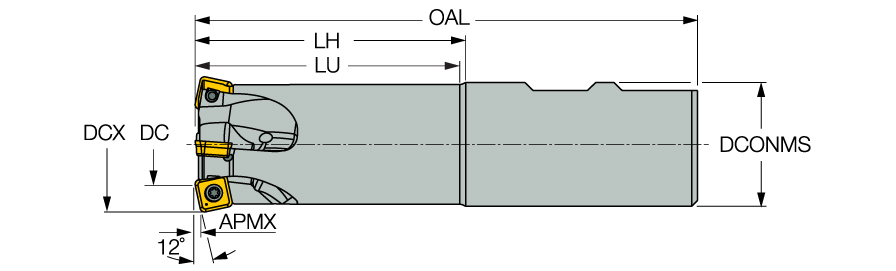

| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 2″ |
| Cutting Diameter (DC) | 0.654″ | Functional Length (LF) | 3.309″ |
| Cutting Item Count (CICT) | 5 | Usable Length (LU) | 1.96″ |
| Depth of Cut Maximum (APMX) | 0.0275″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 4.45″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 2.2 Degrees | Body Material | Steel |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Connection Code Machine Side (CCMS) | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 1″ |
| Master Insert Identification (MIID) | FFQ4 SOMT 060210T | Unit | I |
Product Features
| Family Description | Fast feed endmills carrying single-sided square Inserts with 4 cutting edges. | FamilyName | FFQ4 D-W-06 |
| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT .067 , for insert SOMW .07 with high tool overhang, the maximum depth of cut should be reduced by 50% | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.8598
Name
Indexable End Mills
FamilyName
FFQ4 D-W-06
BrandName
Iscar
