DCN 065-013-MMT06-2D

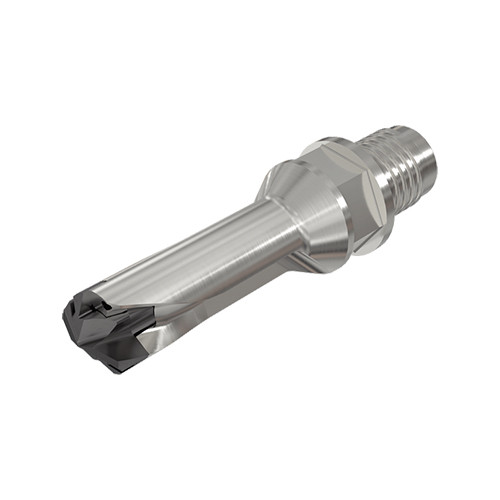

Modular SUMOCHAM drills are dedicated for Multi-Spindle and Swiss-Type machines with a MULTI-MASTER connection for easy adaptation and set up.

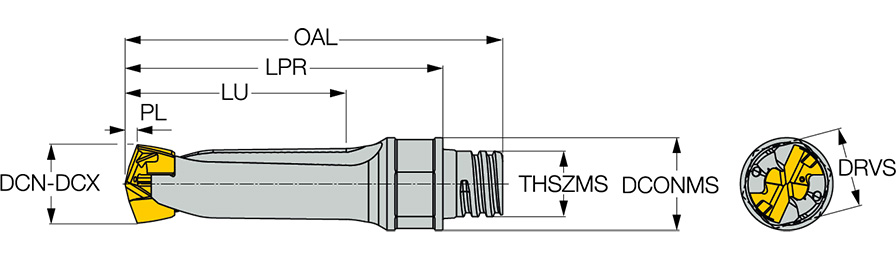

| Usable Length (LU) | 14.18 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 9.6 mm | Master Insert Identification (MIID) | ICP 065 |
| Insert Seat Size Code (SSC) | 6.5 | Point Length (PL) | 1.18 mm |
| Cutting Diameter Minimum (DCN) | 6.5 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 6.99 mm | Shank Diameter Tolerance (TCDMM) | $$$$ |
| Protruding Length (LPR) | 29.5 mm | Unit | M |
| Overall Length (OAL) | 35.8 mm |
Product Features
| Family Description | Modular SUMOCHAM drills are dedicated for Multi-Spindle and Swiss-Type machines with a MULTI-MASTER connection for easy adaptation and set up. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.0300
