VNGU 220630-R3N IC1520

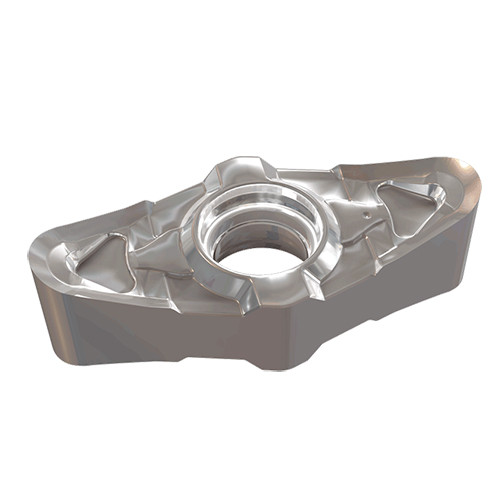

35° rhombic, double-sided sharp edged positive and polished rake inserts. Used for rough machining on soft and non-ferrous materials. Soft cut and low cutting forces eliminate built-up edge.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 1.5 mm |
| Application | | Ext. 35° Diamond 107.5° Approac | Ext. 35° Diamond 72.5° Approac | Int. 35° Diamond 107.5°Approa | | Depth of Cut Maximum (APMX) | 4.5 mm |

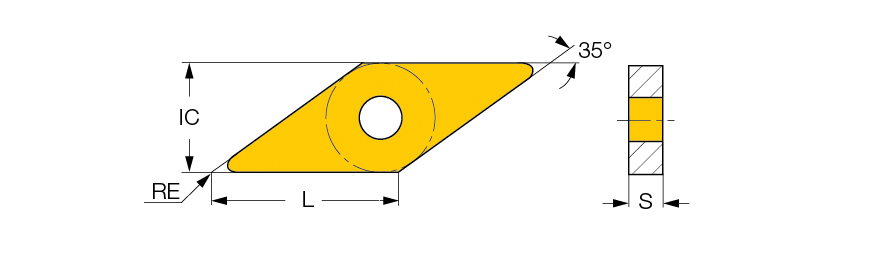

| Corner Radius (RE) | 3 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Insert Size | 220630 | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Cutting Edge Length (L) | 22 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 6.35 mm | Chip Breaker Type | R3N |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Coating | DLC | Body Material | Carbide |
| Grade | IC1520 | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | 35° rhombic, double-sided sharp edged positive and polished rake inserts. Used for rough machining on soft and non-ferrous materials. Soft cut and low cutting forces eliminate built-up edge. | FamilyName | VNGU-R3N |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0200
Name
Turning Indexable Inserts
FamilyName
VNGU-R3N
BrandName
Iscar
