Deep Drilling
See all 7 in this Product Family

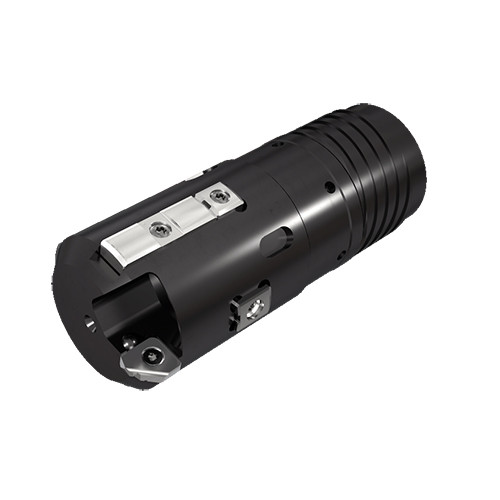

‎DDC-EA 28.71-31.00

‎Double tube counterboring drills with outer 4-start thread connection, cartridges and adjustable diameter (25-40 mm dia.).
ISCARDEEPDRILL
Item # ISC4841315
Brand: Iscar
Mfr#: 4841315
Quantity Available
loading...

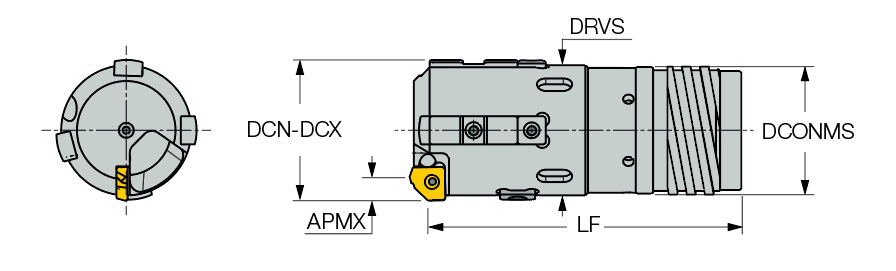

Connection Diameter Machine Side (DCONMS) 25.5 mm Application | Deep Drilling |
Flute Count (NOF) 1 Depth of Cut Maximum (APMX) 2.8 mm
Cutting Diameter Maximum (DCX) 31 mm Drive Size (DRVS) 28 mm
Cutting Diameter Minimum (DCN) 28.71 mm Functional Length (LF) 75.5 mm
Body Material Steel Unit M
Measurement Type Metric
‎DDC-EA 28.71-31.00

Product Features

Family Description ‎Double tube counterboring drills with outer 4-start thread connection, cartridges and adjustable diameter (25-40 mm dia.). COO Japan
Remarks For spare parts and insert information, click on More Info Ordering example: DDC-EA 30.55
