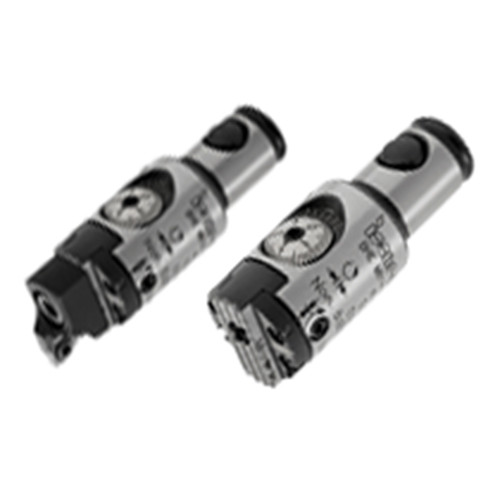

‎BHEI MB40-40-80

Fine boring head used on the MB modular boring system. .0004″ direct diametric adjustment and .00008″ by a vernier scale.

Item # ISC4560120

Brand: Iscar

Mfr#: 4560120

Cutting Diameter Minimum (DCN)

1.89″

Measurement Type

Inch

Cutting Diameter Maximum (DCX)

2.598″

Rotational Speed Maximum (RPMX)

8000 rpm

Functional Length (LF)

3.15″

Body Material

Steel

Connection Diameter Machine Side (DCONMS)

1.575″

Unit

Product Features

Family Description

Fine boring head used on the MB modular boring system. .0004″ direct diametric adjustment and .00008″ by a vernier scale.

COO

Italy

Remarks

Click on individual item, then on More Info to see split view of its spare parts.

Weight per item

1.7527
