TPS UNF-1/2-20-M HETI

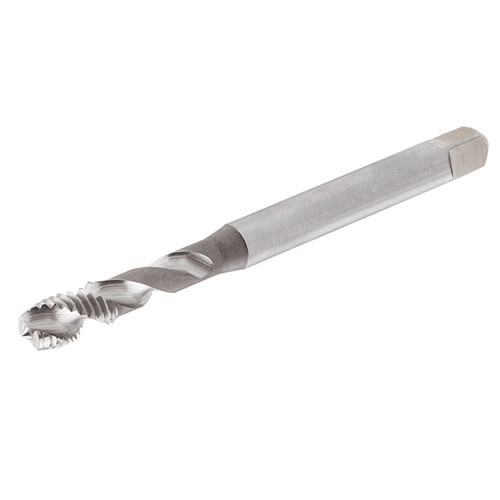

HSS spiral flute machine taps - unified fine threads, for a wide range of materials.

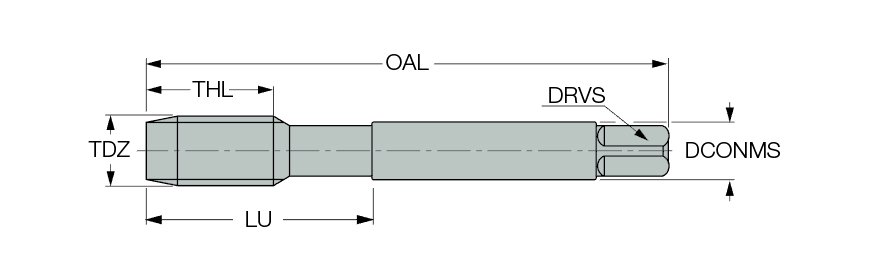

| Thread Diameter Size (TDZ) | 1/2″ | Tool Type | Machine Blind Hole Taps |
| Threads per Inch (TPI) | 20 Threads/" | Coating | TiN |
| Thread Standard | THFT | | Measurement Type | Metric |
| Overall Length (OAL) | 100 mm | Grade | HETI |
| Thread Cutting Part Length (THL) | 13 mm | Thread Form Type (THFT) | UN60 |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Flute Count (NOF) | 3 | Body Material | HSS |
| Flute Helix Angle (FHA) | 40 Degrees | Drive Size (DRVS) | 7 mm |
| Cutting Edge Material | HSS | Thread Size | 1/2 - 20 |
| Standard | DIN 374 | Unit | M |
Product Features
| Family Description | HSS spiral flute machine taps - unified fine threads, for a wide range of materials. | COO | Korea |
Shipping Info
Weight per item
0.0530
