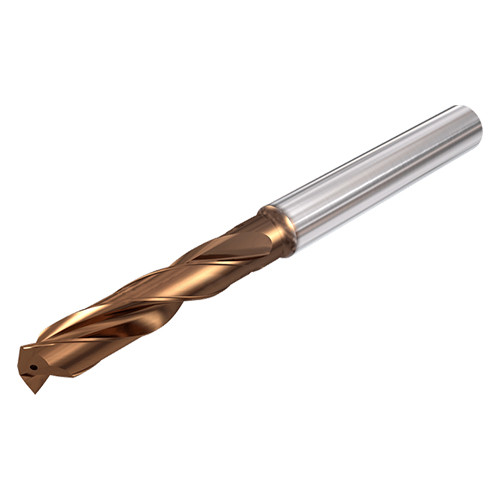

SCD0125-0600-0236 ACP3FL IC608
Solid carbide drills with coolant holes, drilling depth 3xD (available in North America only)

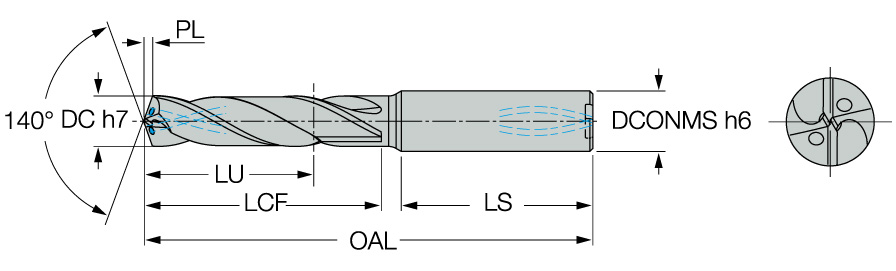

| Drill Bit Size / Cutting Diameter (DC) | 1/8″ | Grade | IC608 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/8″ | Measurement Type | Inch |
| Decimal Equivalent | 0.125″ | Usable Length (LU) | 0.6″ |
| Coating | AlTiCrSiN | Length Chip Flute (LCF) | 0.79″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Overall Length (OAL) | 2.441″ |
| Application | | Drilling | | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Number of Teeth | 2 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.65″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round | Unit | I |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Solid carbide drills with coolant holes, drilling depth 3xD (available in North America only) | COO | USA |
| Remarks | Based on DIN 6537 standard |
